1、水平和傾斜輸送干燥粒狀物料。
Convey dry granular materials horizontally and vertically.
2、傾嵙角≤60。。
Inclination angle ≤60°
3、輸送距離可達150m，提升高度可達60m。 Maximum conveying distance is 150m, and maximum lifting height is 60m.
4、輸送能力75m3/h-240m3/h。
Conveying capacity 75m3/h-240m3/h

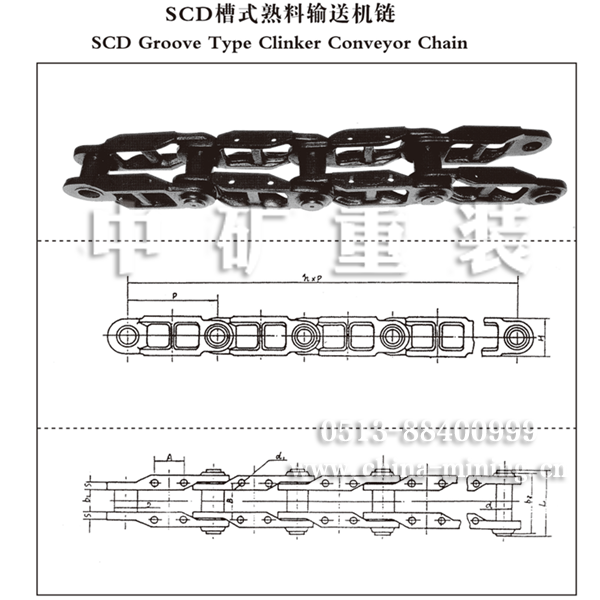

5、牽引鏈采用模鍛成型鏈板，強度高、.壽命長。 The pulling chain uses die-forging chain plate,which has high strength and long service life.
6、承載與牽引分開的結構，使輸送機受力合理、運行平穩(wěn)。
It has the structure of load bearing separated from pulling, which enables the conveyor to have reasonable load-carrying and stable working.
7、物料溫度250°C。
Material temperature ≤250°C
8、適宜物料粒度50mm，粒度200mm。 Applicable material granularity 50mm, with a maximum of 200mm.

SCD槽式熟料輸送機機載水平輸送時（傾角≤25°）的額定輸送量（單位：m3/h）
